A solar panel can be quietly cooking itself from the inside and you’d never know by looking at it. No smoke, no visible damage, no warning light. Just a cell running hotter than it should, slowly losing efficiency, and in rare cases building toward a real fire risk. That’s the problem thermography inspection exists to solve — it makes the invisible visible.
If you’ve read about hot spots on solar panels before, you already know why a hot cell is bad news. Thermography is simply how professionals go looking for that problem before it finds you.
What is solar panel thermography, exactly?
Solar panel thermography is a diagnostic inspection method that uses infrared cameras to read the surface temperature of PV modules and spot anomalies — spots that are running hotter or colder than the surrounding cells. Because faulty cells, loose connections, and failing components almost always show up as a temperature difference before they show up as anything else, thermal imaging catches problems weeks or months before they’d be obvious any other way.
It’s non-destructive, non-invasive, and doesn’t require shutting the system down. You point a thermal camera at the array, and the pattern of heat tells its own story.
What it typically finds:
- Hotspots caused by shading, soiling, or cell damage
- Defective or cracked cells
- Cell mismatch within a module
- Failed or failing bypass diodes
- Loose or corroded electrical connections (these run noticeably hot)
- Underperforming strings that a visual check would miss entirely

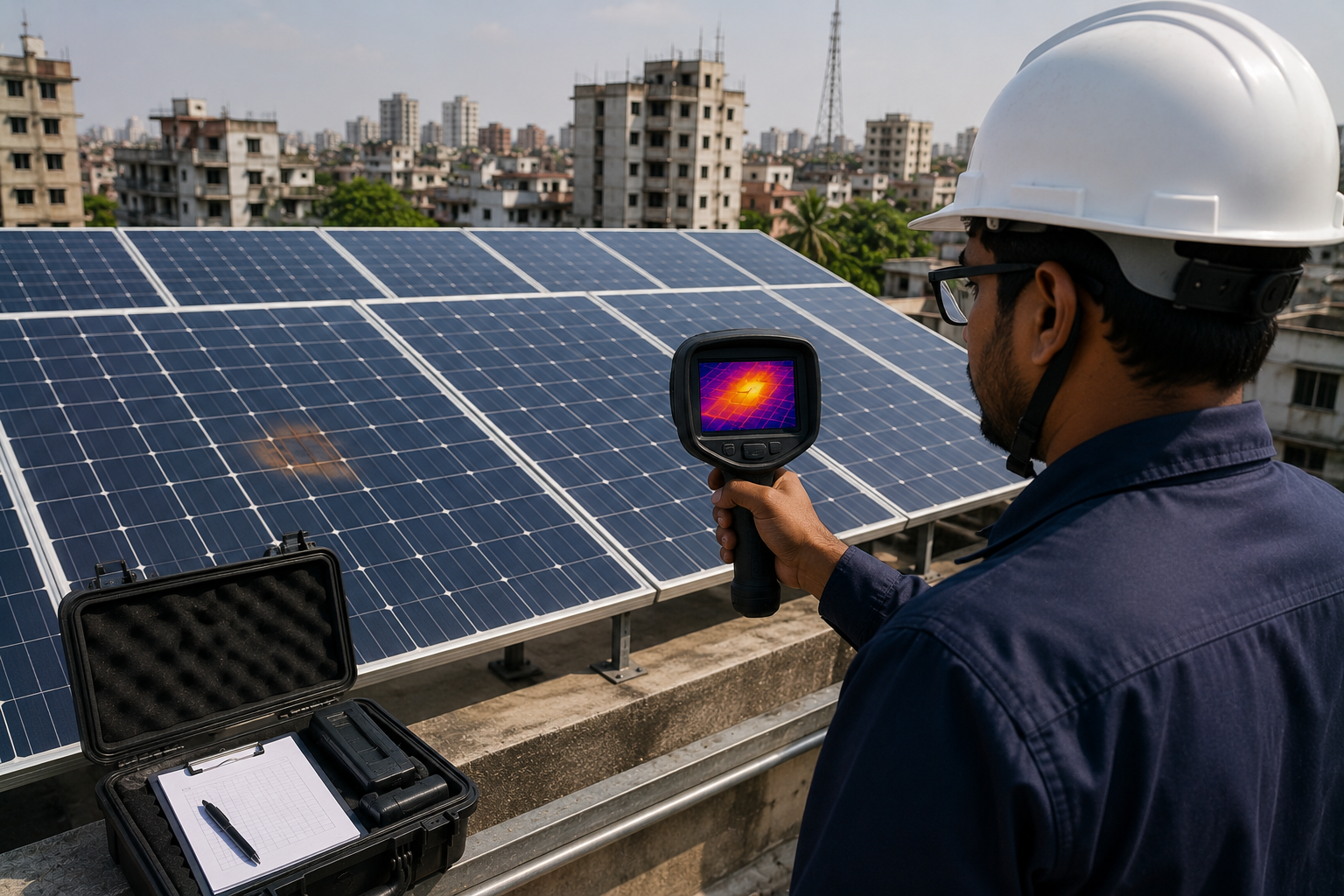

Ground-based vs. drone-based thermography
There are two practical ways to run a thermal inspection, and the right one depends almost entirely on system size.
| Handheld / Ground-based | Drone-based Aerial | |
| Best for | Small rooftop systems, spot-checks | Large rooftops, ground-mount, utility-scale plants |
| Coverage | Slow — walking the array module by module | Fast — a drone can cover far more ground in a single flight |
| Access | Limited by roof access and safety | No rooftop access needed; safer for large or hard-to-reach arrays |
| Detail level | Good for close-up single-module checks | Good for whole-array pattern spotting, plus module-level zoom on high-res cameras |
| Typical user | A technician doing routine maintenance rounds | A specialist service provider or EPC/O&M contractor |
For a factory rooftop system or a ground-mount plant, drone thermography is the industry-standard approach — it can cover dramatically more array area per hour than someone walking the roof with a handheld camera, which matters when you’re inspecting thousands of panels rather than a few dozen. Vendors and equipment makers commonly cite figures in the range of megawatts-per-hour for drone inspection versus a fraction of that for manual walkthroughs — treat these as general industry reference points rather than guaranteed numbers, since actual speed depends on the drone, camera resolution, and site layout.
Do you actually need this?
Here’s the honest answer most articles on this topic skip: it depends heavily on your system size.
If you’re running a small rooftop system — a typical home in Dhaka, Bogura, or anywhere else with a 3–10 kW setup — commissioning a professional drone thermography service usually isn’t worth the cost or effort. It’s built for scale. What actually makes sense at this size:
- Occasional visual inspection for visible discoloration, debris, or shading
- Watching your inverter or monitoring app for sudden output drops, which is often the first real sign something’s wrong
- Asking your installer or O&M provider to do a spot thermal check if you notice a persistent performance dip
If you’re operating a C&I rooftop or a utility-scale plant, thermography earns its place as a recurring part of your maintenance strategy. At this scale, a single undetected hotspot across hundreds of modules can mean real, measurable energy loss — and it’s cheap insurance against a fire risk sitting in a factory roof you can’t see from the ground. Many O&M contracts already build periodic thermal inspection into the schedule, often paired with string-level monitoring so problems get flagged between physical inspections too.
So a fault shows up on the thermal image — now what?
This is the part most explanations of thermography skip entirely, and it’s usually the reader’s real question.
A thermal anomaly on its own isn’t a diagnosis — it’s a starting point. A competent inspection report should tell you roughly where the anomaly sits (which module, which string), how severe it looks compared to normal operating temperatures, and a likely cause based on the heat pattern. From there:
- A technician verifies the finding on the ground — sometimes what looks like a hotspot is actually shading from a nearby object or dust buildup, both of which are easy fixes.
- If it’s a genuine module or connection fault, the affected component gets tested further, repaired, or replaced — a failed bypass diode, for instance, is a straightforward swap; a badly degraded cell usually means module replacement.
- The array gets re-checked after the fix to confirm the anomaly is gone and hasn’t reappeared elsewhere in the string.
None of this happens instantly, and that’s fine — the value of thermography isn’t an on-the-spot fix, it’s catching the problem while it’s still small and cheap to deal with, instead of after it’s degraded a whole string’s output or turned into a safety issue.
When to schedule an inspection in Bangladesh
Thermal imaging needs decent sunlight to work — enough solar irradiance for cells to be actually generating heat differentially, minimal cloud cover, and low wind so surface temperatures don’t get skewed by cooling. That makes Bangladesh’s dry season, roughly November through February, the more reliable window for scheduling an inspection, when skies tend to be clearer and haze is lower than during the monsoon months. It’s not a hard rule — inspections can still be done outside this window on a clear day — but if you’re planning ahead, dry-season scheduling gives more consistent results.
It’s also worth being realistic about local service availability: drone-based thermography as a commercial offering is more established around utility-scale and larger ground-mount plants in Bangladesh than it is for smaller rooftop C&I systems. That’s shifting as the market matures, but if you’re a smaller operator, don’t assume it’s a one-call-away service the way panel cleaning or basic O&M is.
What does it cost?
There’s no reliable published pricing for thermography inspection services in Bangladesh’s market yet, and it wouldn’t be honest to invent a number. What genuinely affects the cost, wherever you’re getting it done:
- System size and how many modules need covering
- Ground-based vs. drone-based inspection
- Whether the report includes AI-assisted anomaly classification and formal compliance documentation, or just raw thermal images
- Site accessibility and how the plant is laid out
For most C&I operators, the right way to think about it isn’t “what does this cost” in isolation, but “what does an undetected fault cost me in lost output or repair scale if I don’t catch it early” — that’s the trade-off thermography is actually solving for.
Where this fits into your maintenance plan
Thermography works best as one layer in a broader system health strategy, not a one-off event. Pairing periodic thermal inspection with ongoing string or module-level monitoring gives you both sides of the picture — monitoring flags something’s wrong in near real time, and a thermal inspection tells you exactly where and why. For a facility manager or O&M contractor thinking about a full-year maintenance schedule, that’s the kind of holistic planning worth building in from the start, whether it’s Muspana or another provider handling it — the point is that fault detection shouldn’t be a once-and-done exercise.
FAQs
What is solar panel thermography?
It’s an inspection method using infrared cameras to detect temperature differences across solar panels, revealing faults like hotspots, cracked cells, or failed connections that aren’t visible to the eye.
How often should solar panels get a thermal inspection?Â
For C&I and utility-scale systems, an annual or twice-yearly inspection is common practice, often built into an O&M contract. Small residential systems generally don’t need scheduled professional inspections — occasional visual checks and monitoring alerts are usually enough.
Can I do thermal inspection myself with a phone or handheld camera?Â
A consumer-grade thermal camera can give a rough indication of an obvious hotspot, but it lacks the resolution and calibration of professional equipment, and won’t reliably catch smaller or early-stage faults. For anything beyond a quick spot-check, a professional inspection is more reliable.
What does thermography detect that a visual check can’t?Â
Visual checks catch physical damage, dirt, or shading you can see. Thermography catches internal electrical faults — a failing bypass diode, a loose connection, or a degrading cell — that show up as heat long before there’s any visible sign.
Does a small rooftop solar system need drone thermography?Â
Usually not. Drone-based thermography is built for scale — it makes the most sense for large C&I rooftops or utility-scale plants where covering many modules quickly matters. A small home system is better served by regular monitoring and occasional visual inspection.
What happens after a thermal fault is found?Â
The finding gets verified on the ground, the cause is identified (a fixable issue like shading, or a genuine component fault), the affected part is repaired or replaced, and the array is re-checked to confirm the fix worked.
